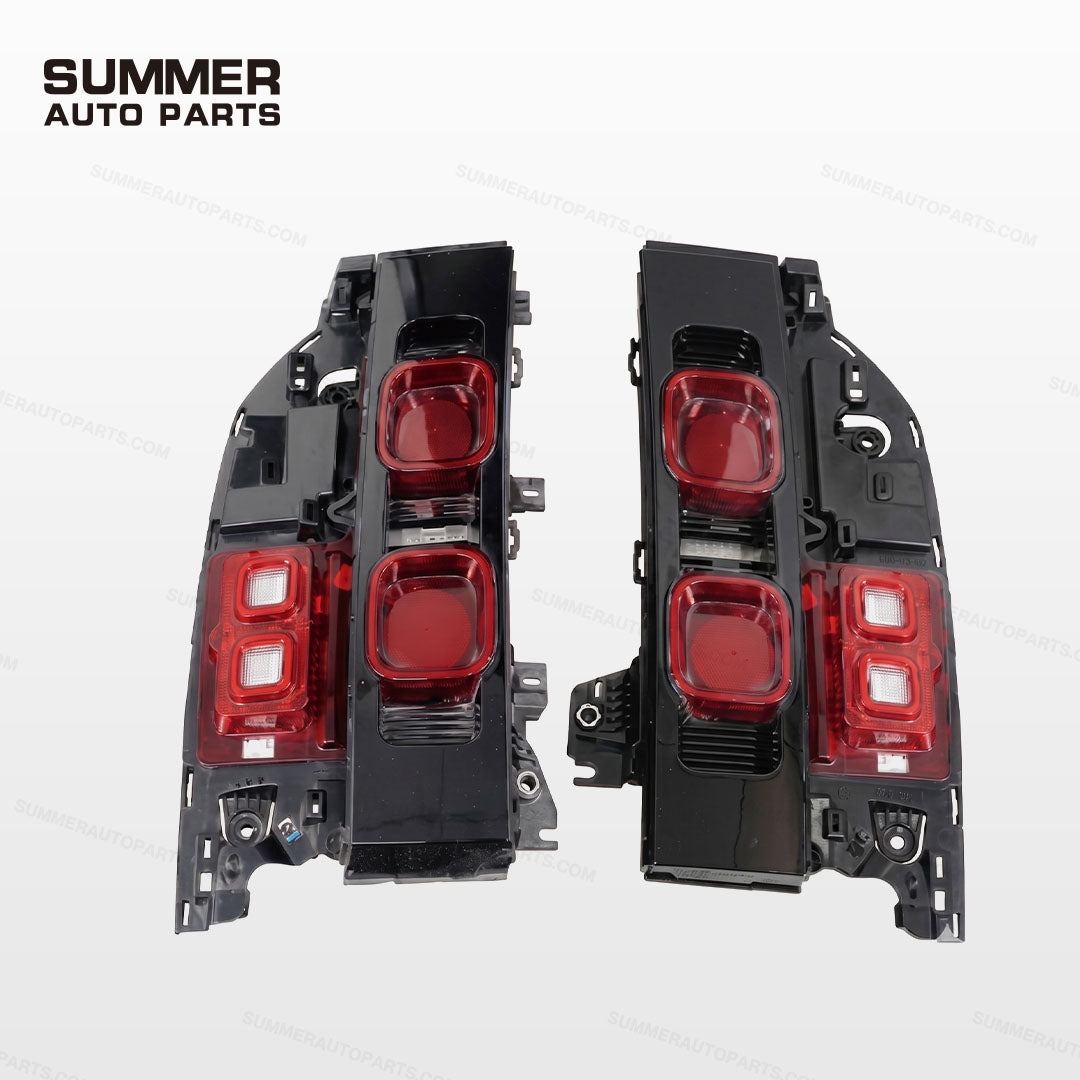

LED Tail Lights for Land Rover Defender L663

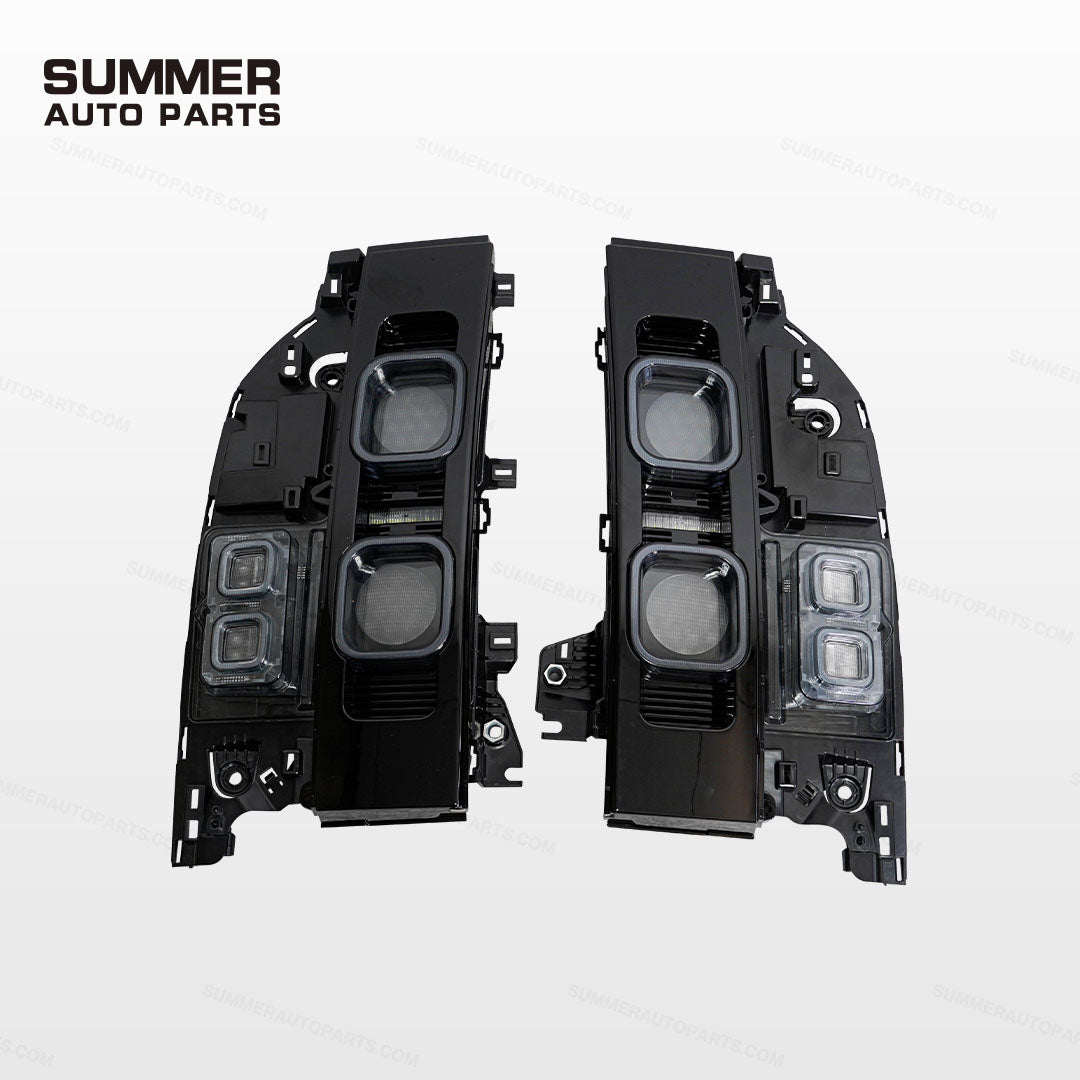

Owners of the Land Rover Defender L663 running factory red lenses face two problems: stone damage on unpaved routes cracks the housing and lets moisture in, and sourcing original factory replacements carries a high parts cost. This assembly replaces the factory unit with a smoked polycarbonate lens on a rigid ABS base - same mounting positions, same connector, no wire splicing.

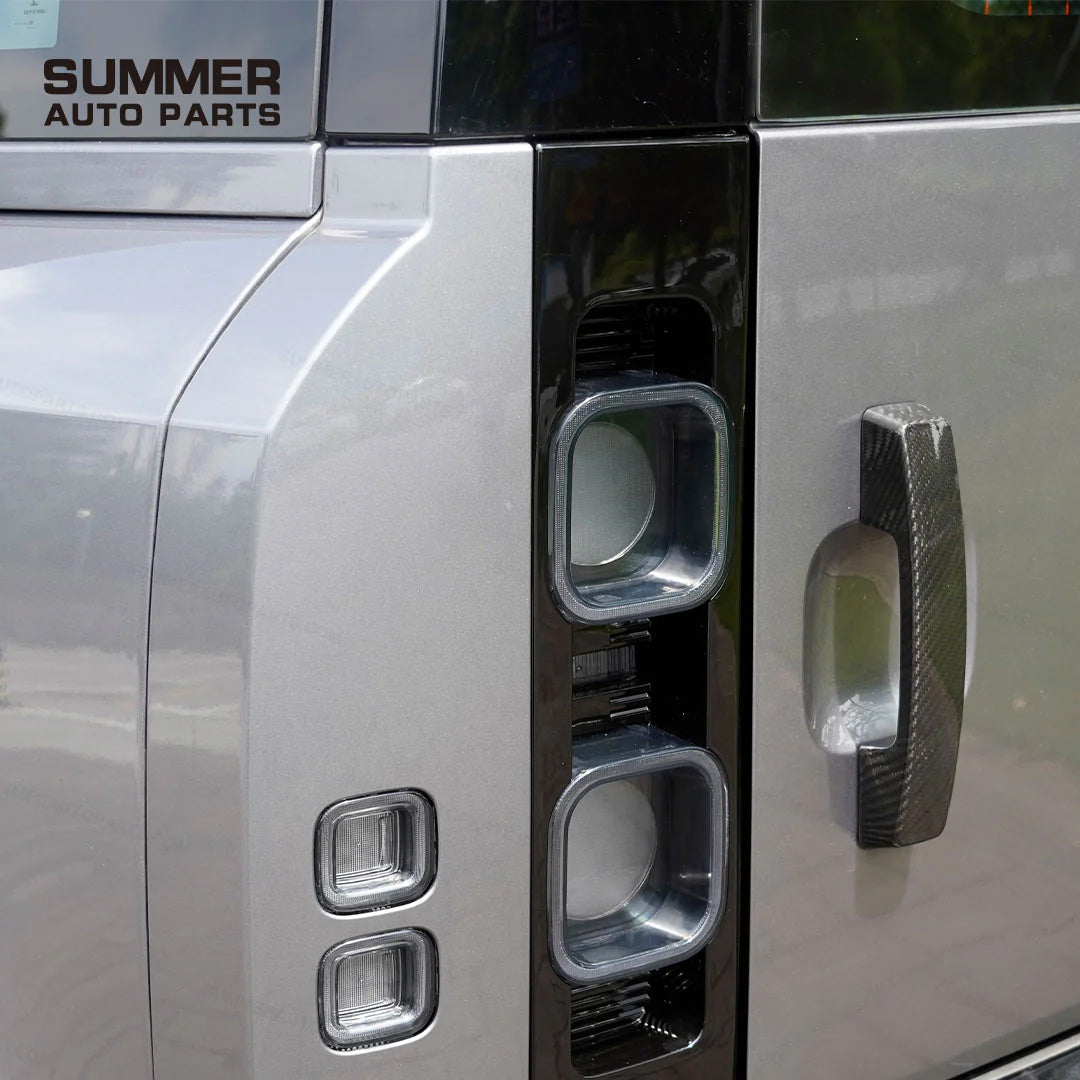

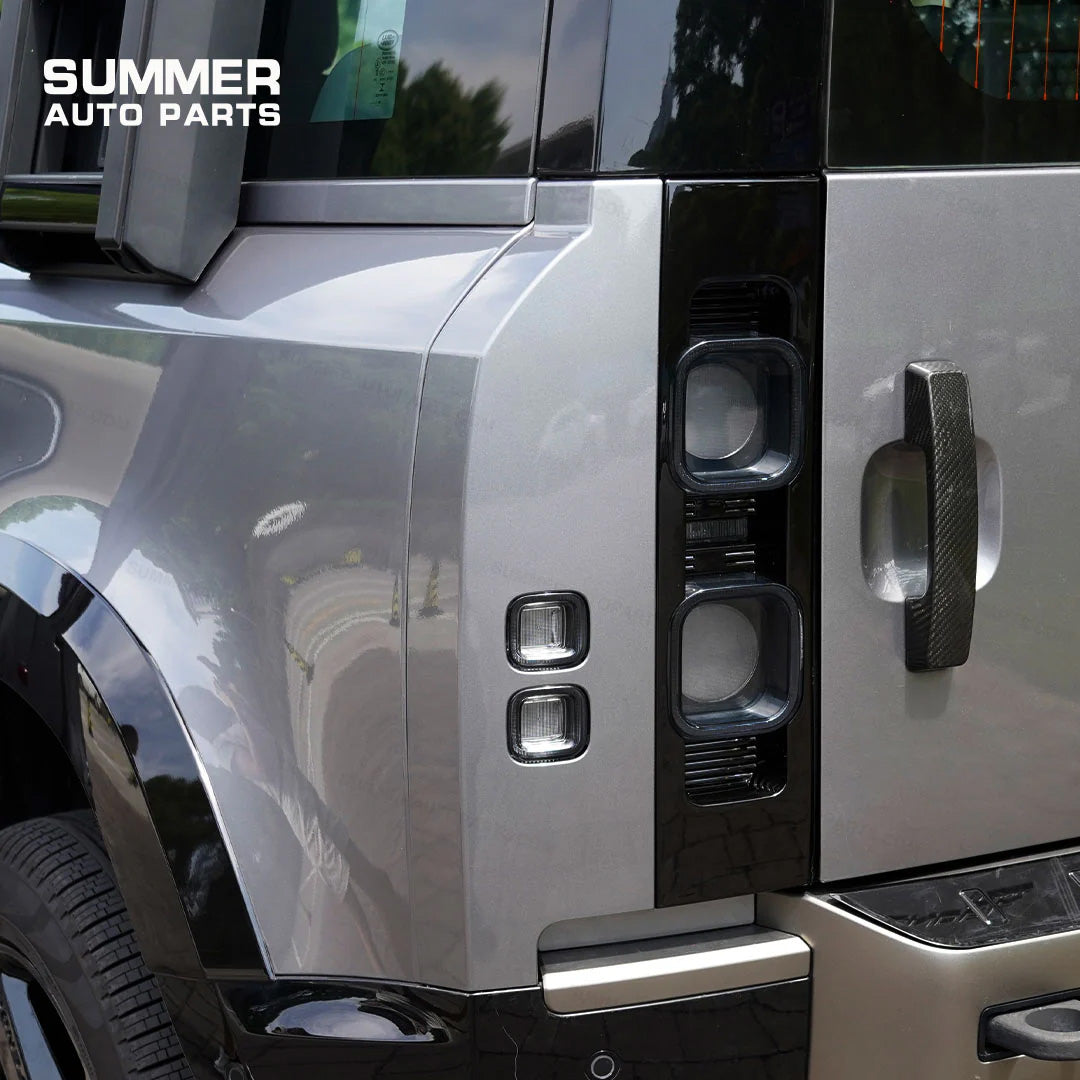

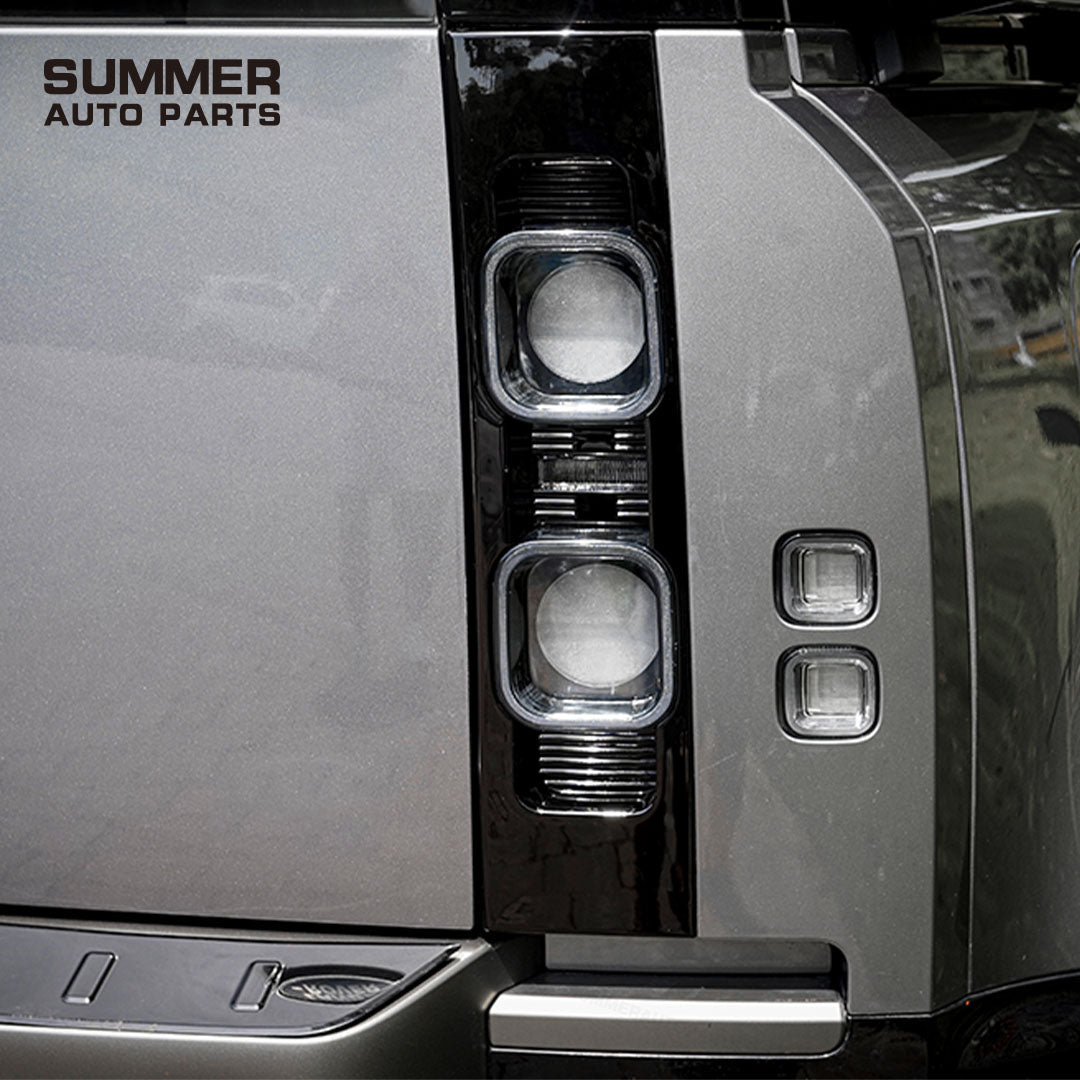

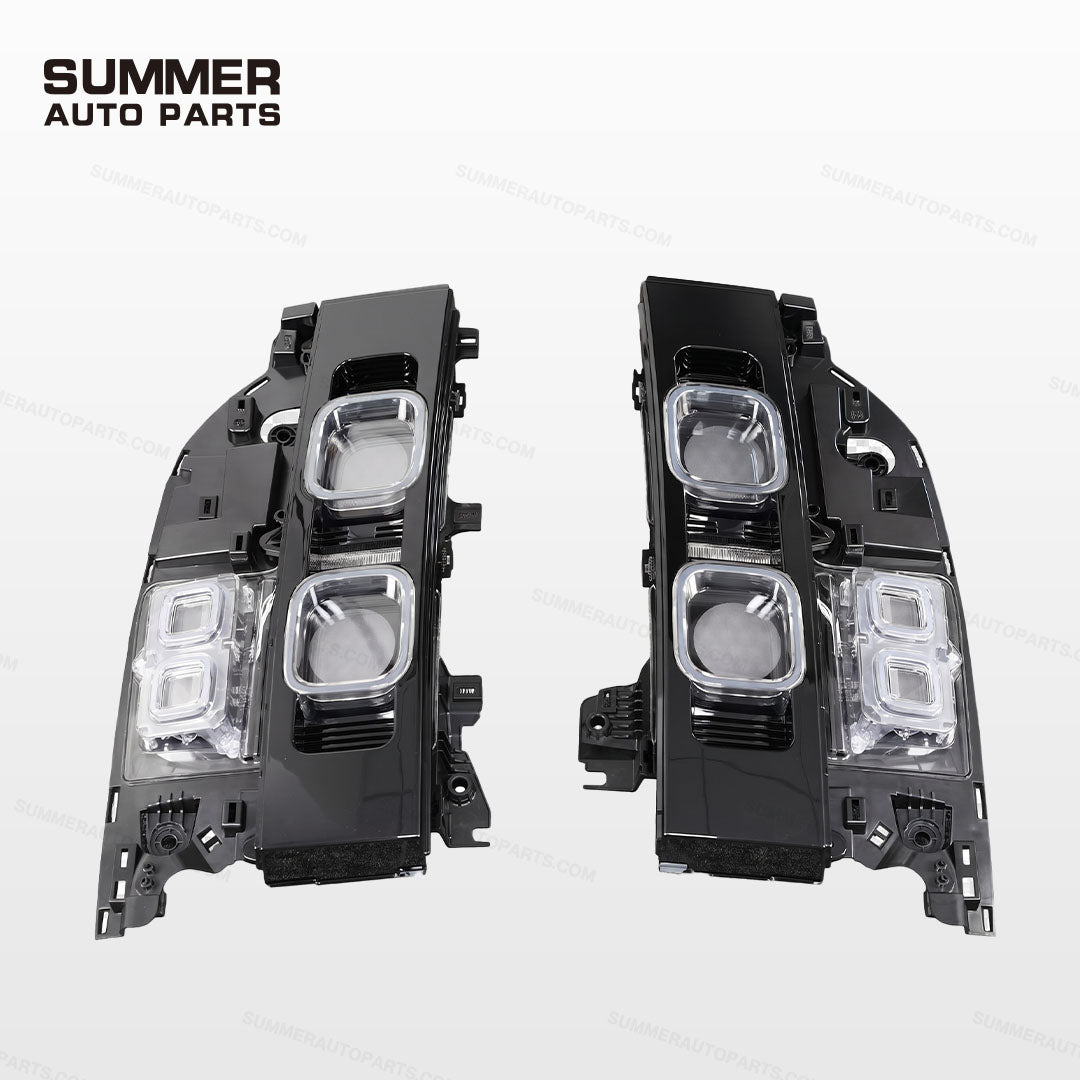

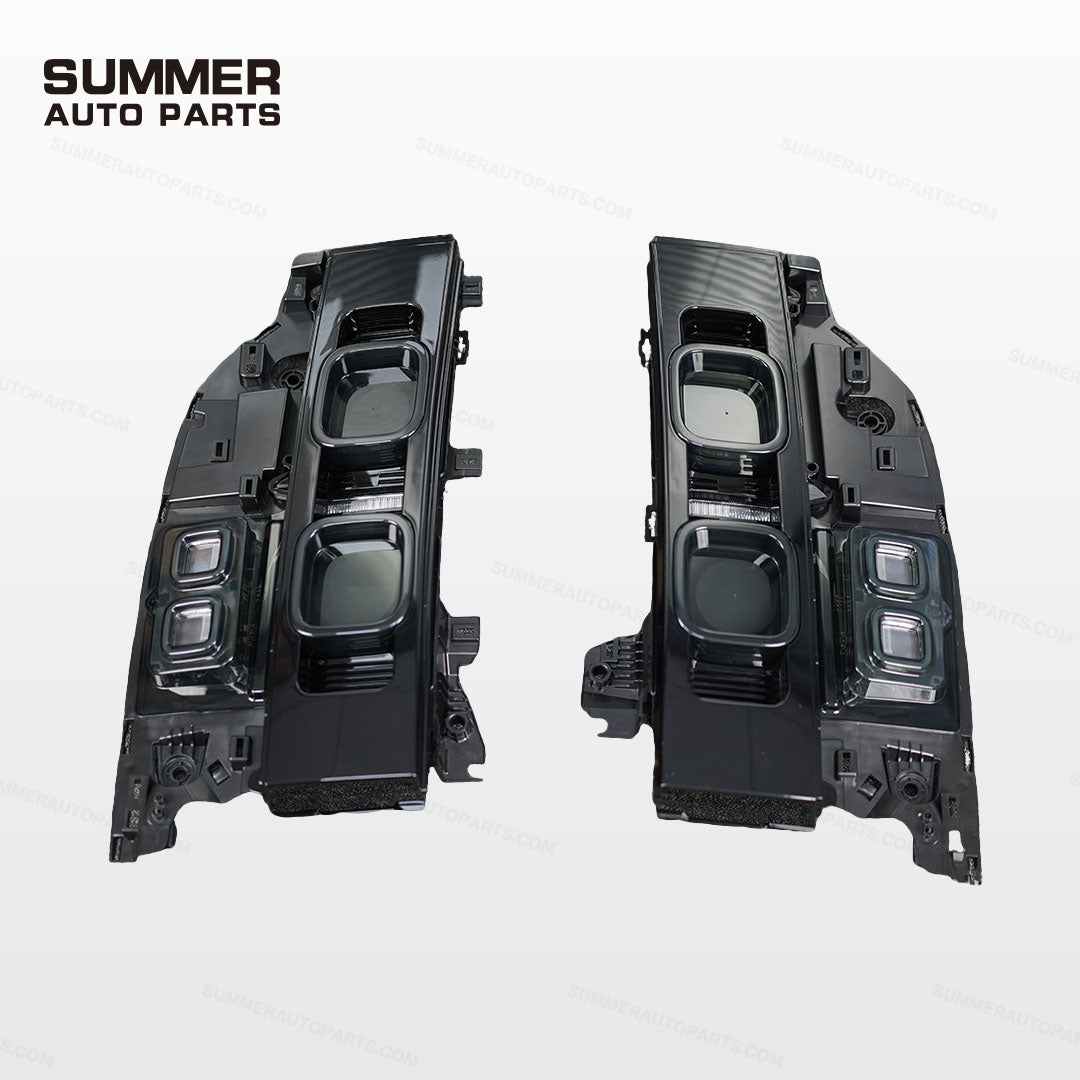

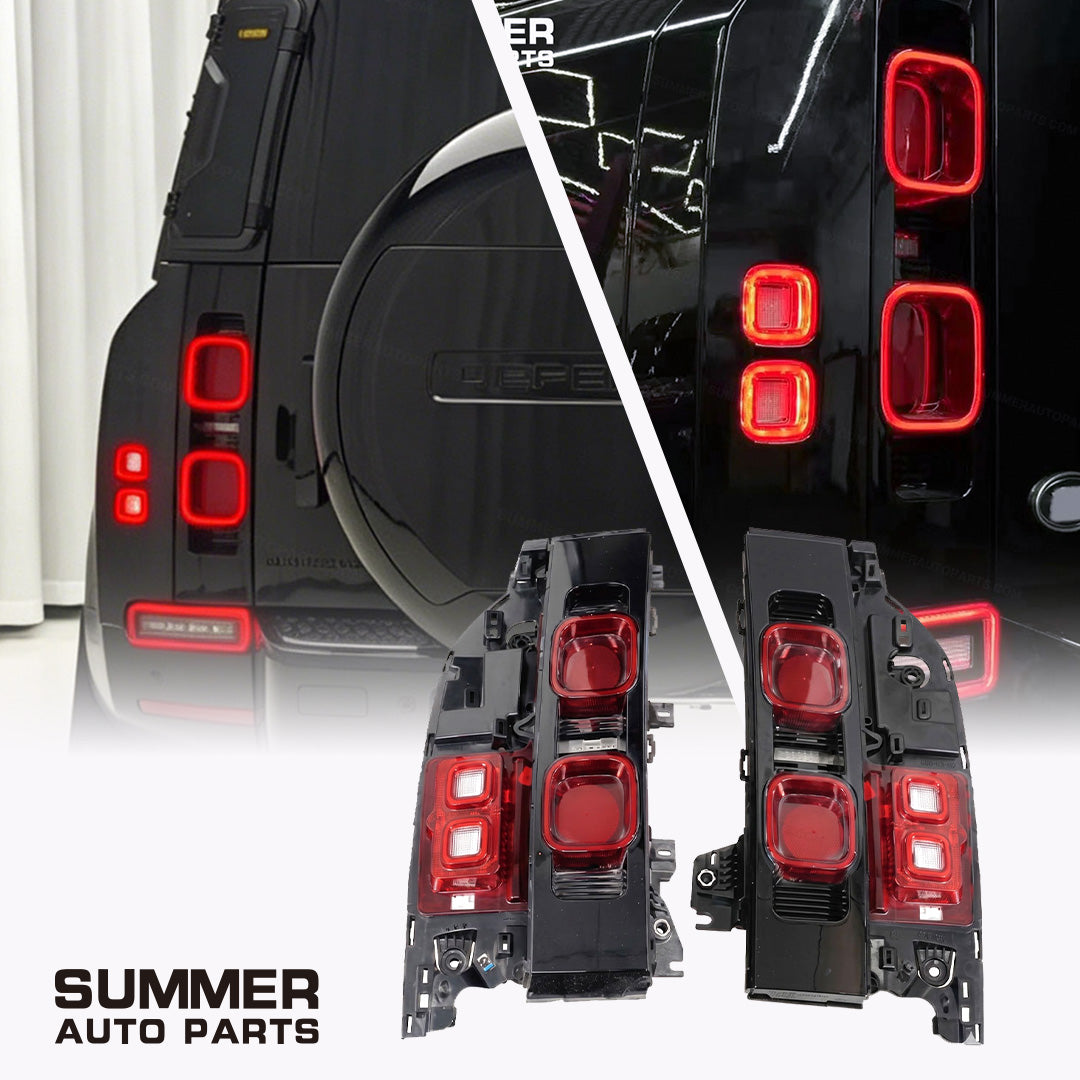

The housing matches the original three 10mm bolt mounting positions and uses the factory specification connector for direct installation. The rear structure fits the original vehicle rubber seals to maintain weather protection on trail driving. Available in Smoke Gray, White, Red, and Black lens options.

Specifications

• Lens Material: Polycarbonate
• Housing Material: ABS plastic
• Color Options: Smoke Gray, White, Red, Black
• Connector: Direct-fit factory harness plug - no modification required

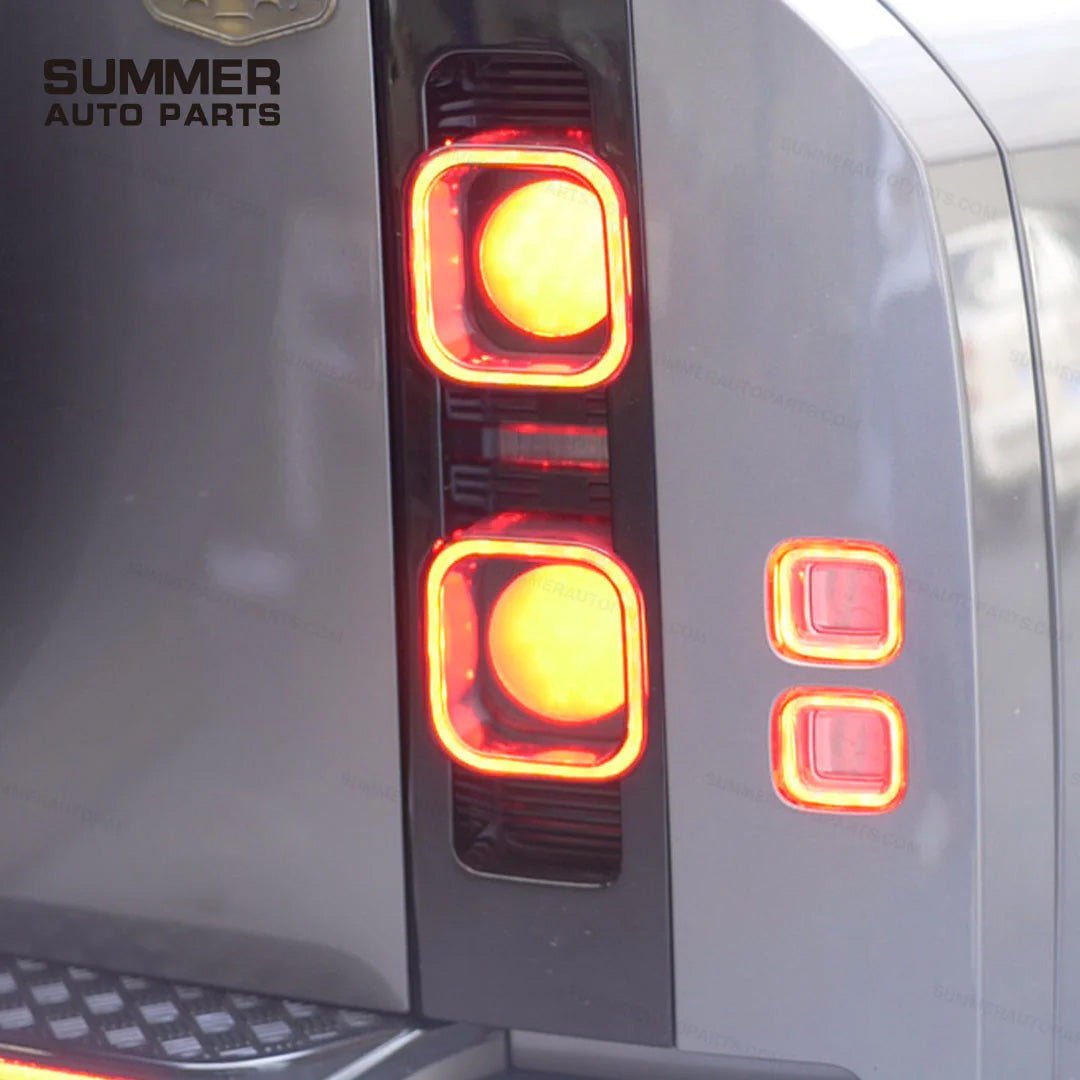

• Signal Functions: Brake, reverse, indicator
• Compatibility: Land Rover Defender 90, 110, 130 L663 - 2020 to 2025

Pairs with the LED headlight assembly for a consistent front-to-rear lighting build. Add a rear wheel carrier or roof cargo rack to complete the exterior setup.

FAQ

Can this replace the standard red factory lights on base model Defenders?

Yes. This unit is a direct-fit replacement for factory red lamps. Base models can run the smoked lens without vehicle software modification.

Do the original rubber seals transfer to the new housing?

Yes. The factory rubber bungs on the original housing must be moved to the corresponding positions on the new ABS housing to maintain the weather seal.

Is there anything to watch for when fitting the right-side rear lamp?

The right-side cavity contains the main wiring harness and the rear glass washer fluid pipe. Both must be unclipped and routed clear before seating the housing to avoid pinching.

What tools are needed for installation?

A 10mm socket for the three mounting bolts and plastic trim tools to unclip the D-pillar covers. No specialist tools required.
