LED Front Grille Light Bar for Land Rover Defender 90 110 130 L663 2020-2026

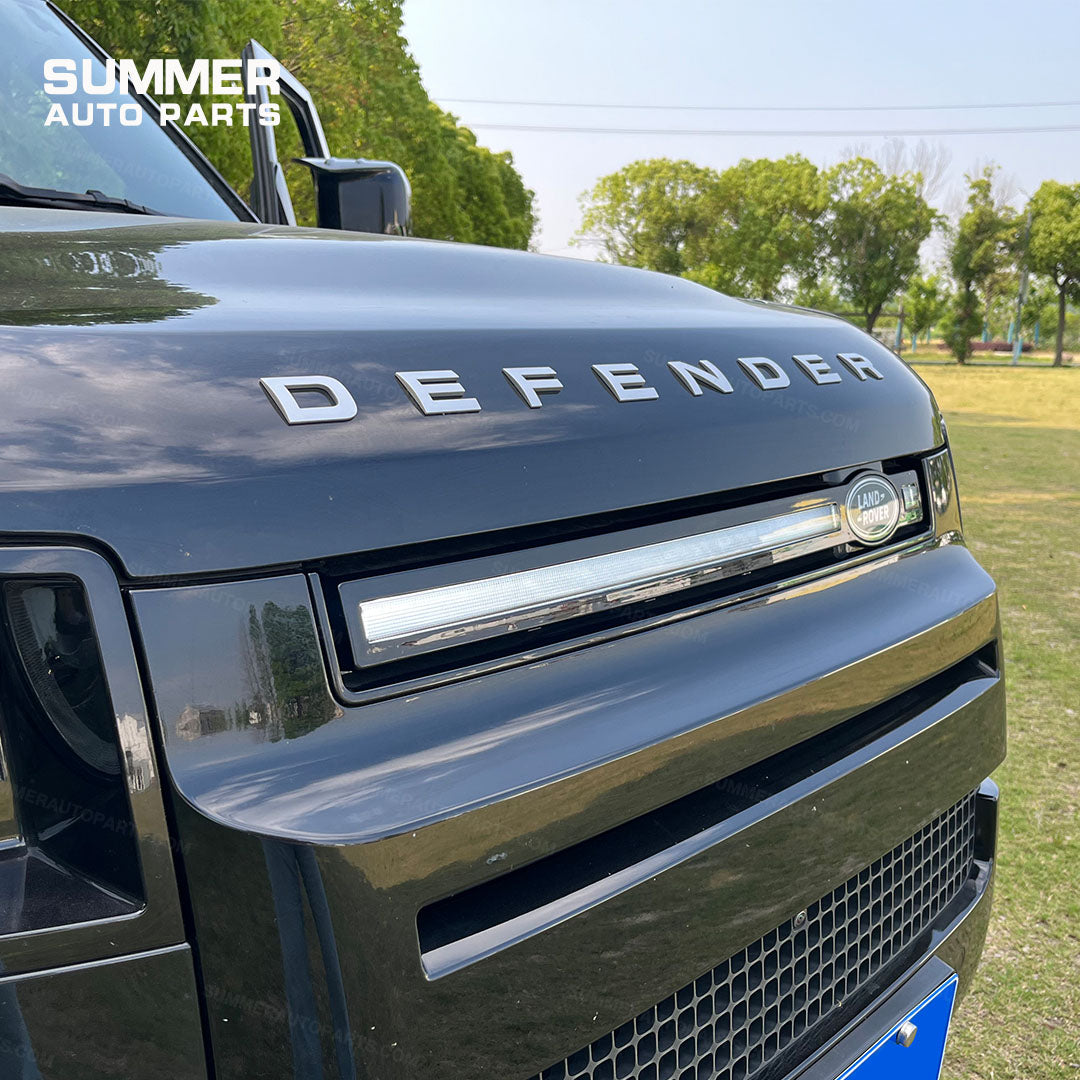

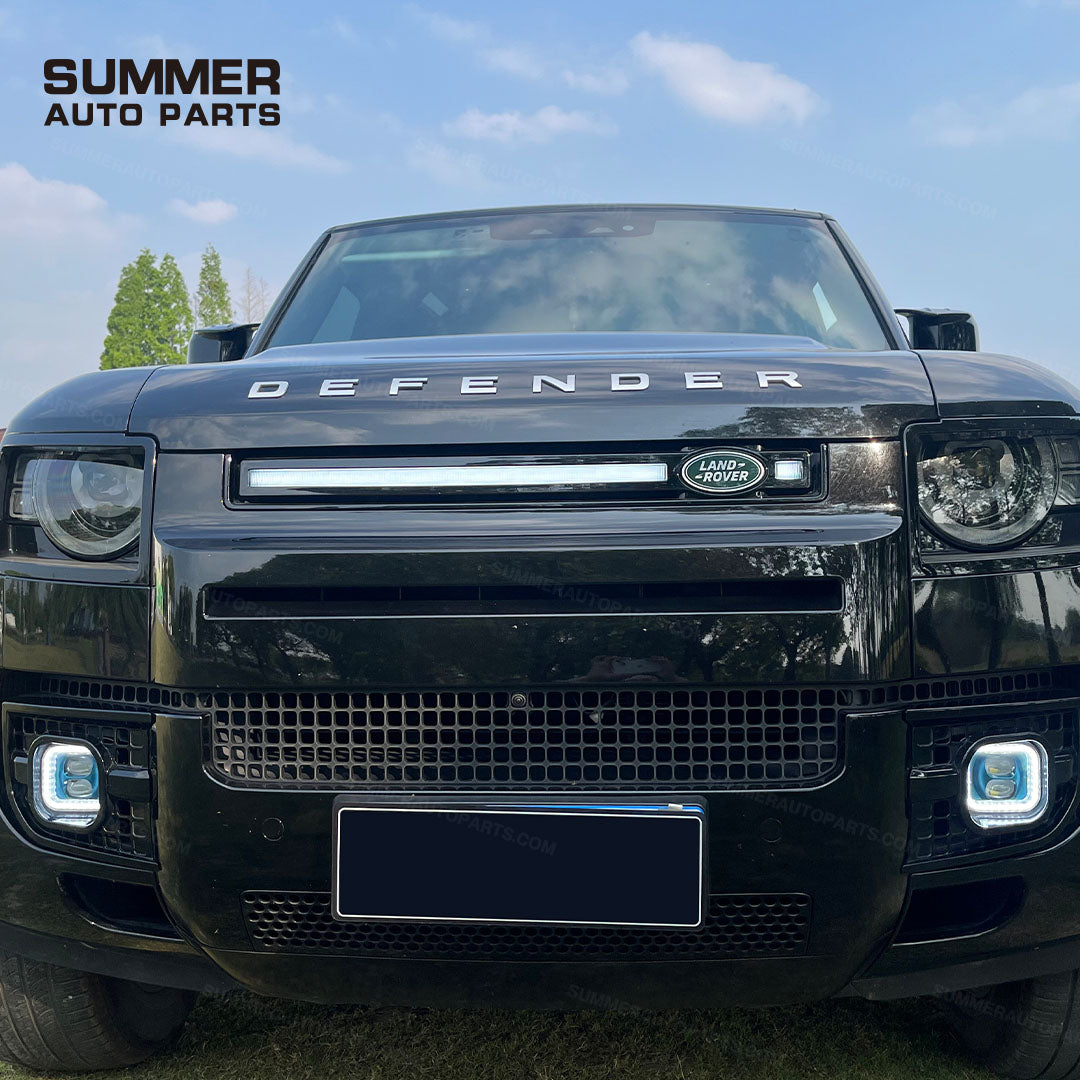

The Land Rover Defender L663 factory grille insert has no integrated illumination - the central zone ahead of the bumper stays dark on unpaved tracks and unlit basecamp approaches. Low obstacles and deep ruts in the immediate driving path are difficult to read from the cabin during night travel. This replacement panel fits flush into the factory grille opening and adds a forward-facing LED light bar without modifying the bumper or adding dashboard switches.

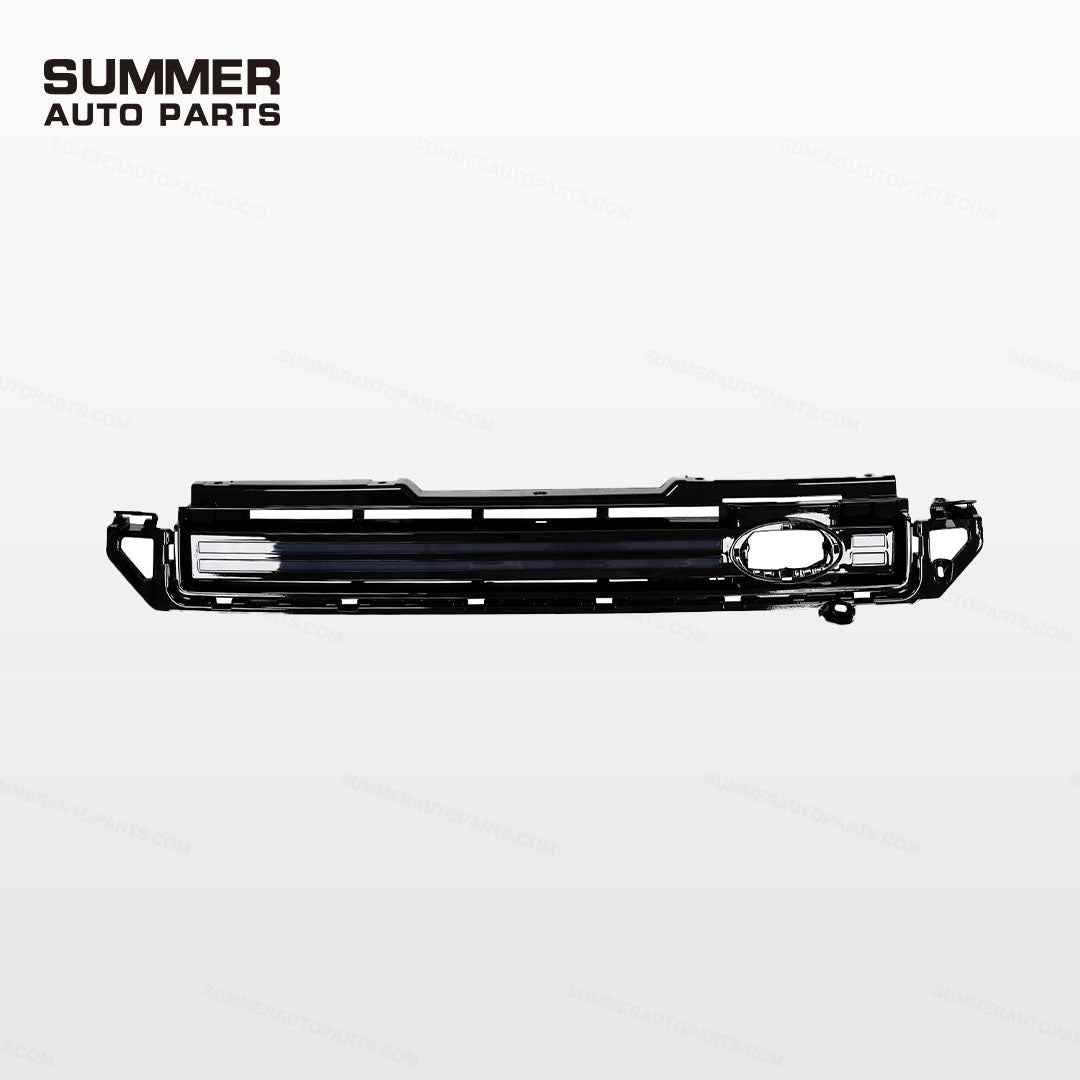

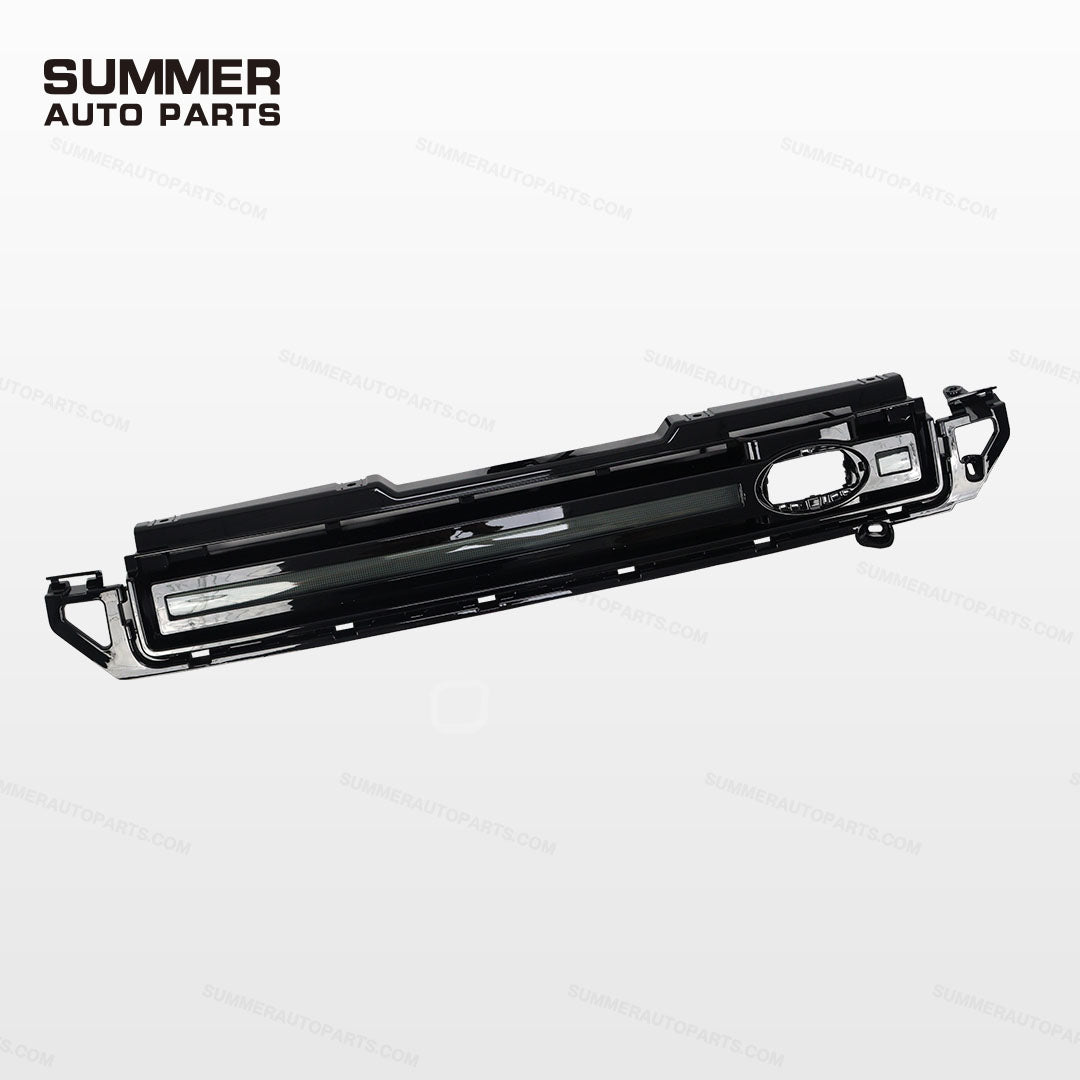

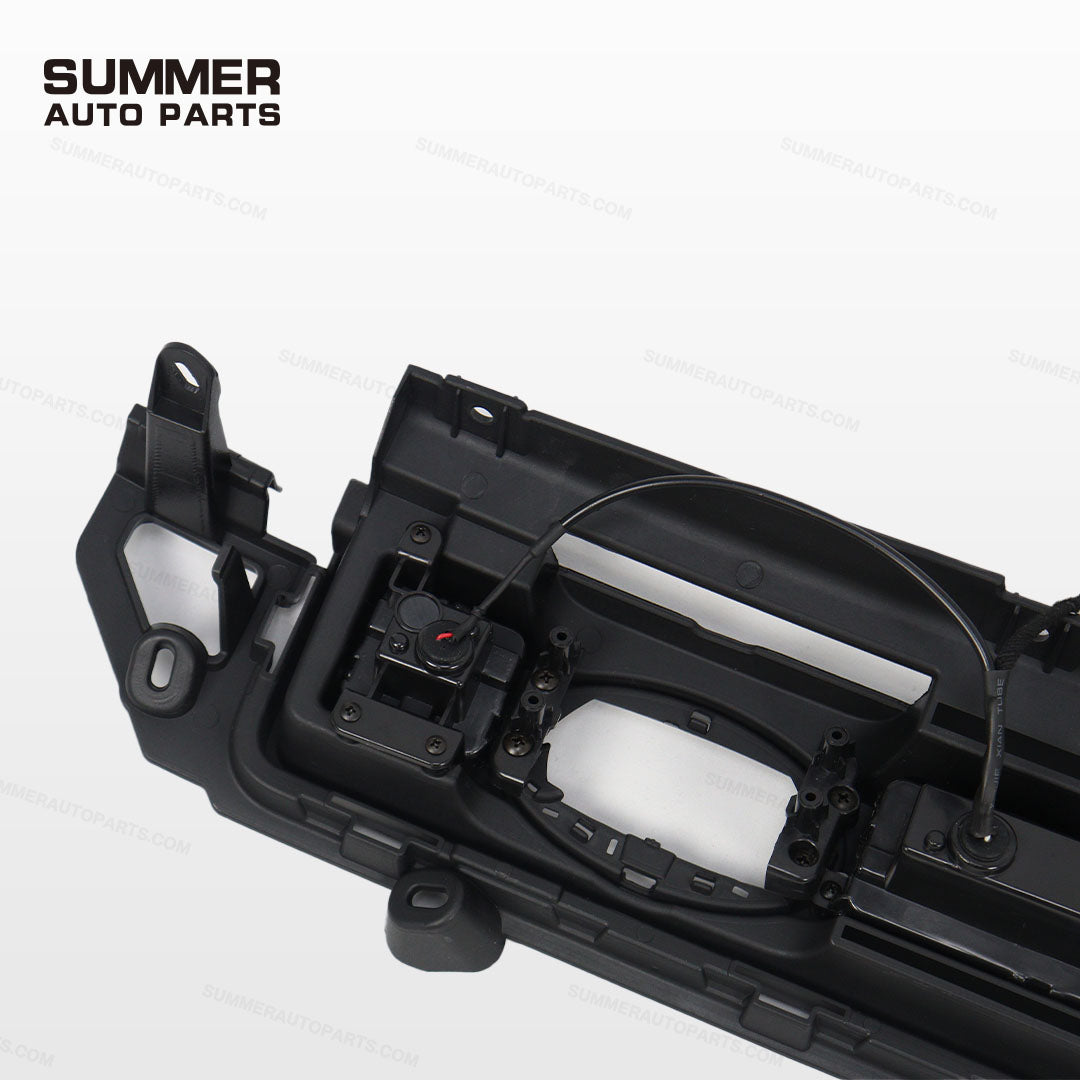

Available in single light bar and dual light bar configurations. The gloss black ABS panel retains the factory ACC radar mounting points on the reverse side - the original module reinstalls using the four original T20 screws without system errors. The factory grille badge transfers directly to the new central housing via the five built-in release clips and three positioning pins. Wiring runs to the F7B fuse slot in the engine bay fuse box and grounds to the 10mm shock tower bolt - no relay required. The integrated circuit triggers a sweeping startup sequence on ignition automatically.

Specifications

• Panel Material: High-impact ABS plastic, gloss black finish
• Lens: Polycarbonate LED lens cover

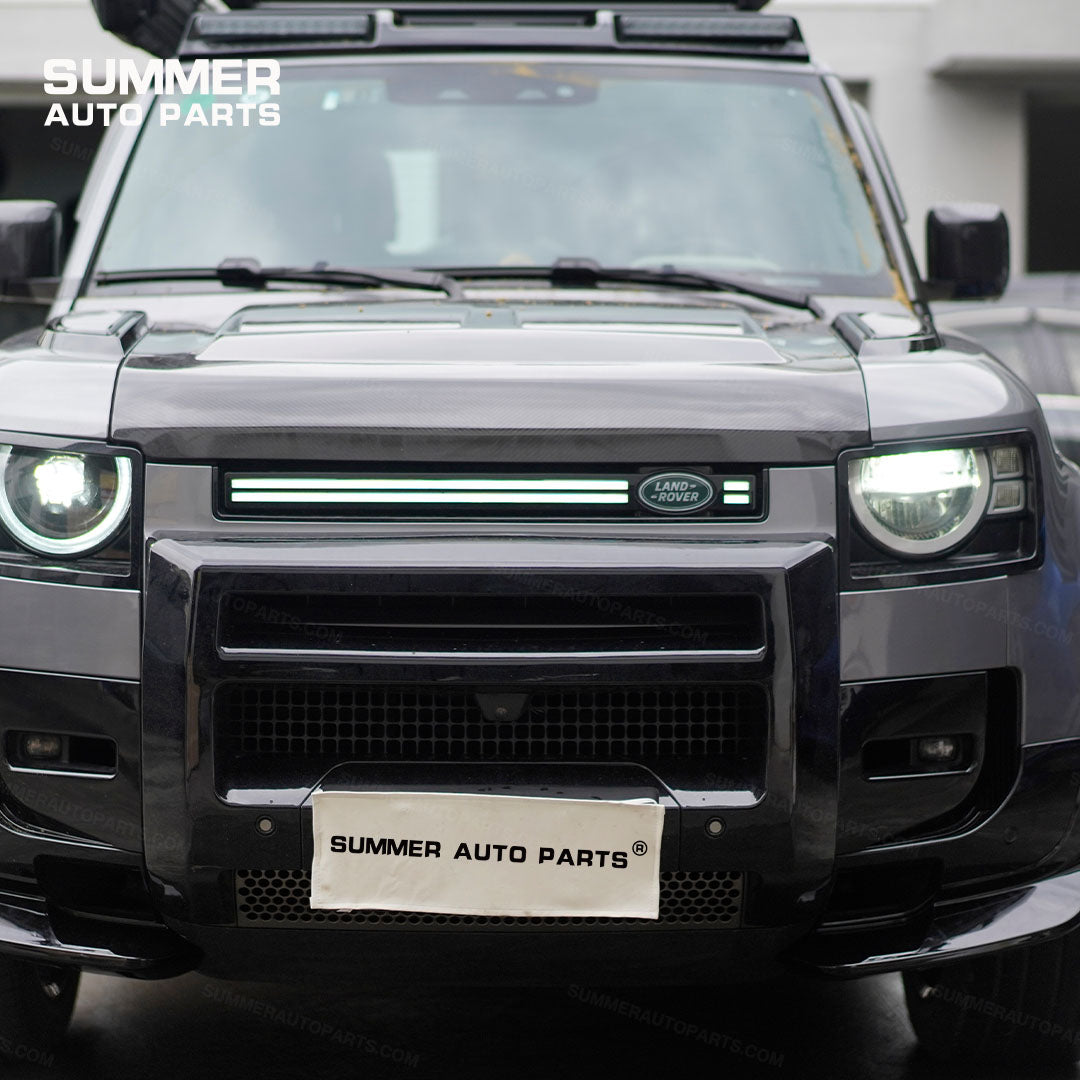

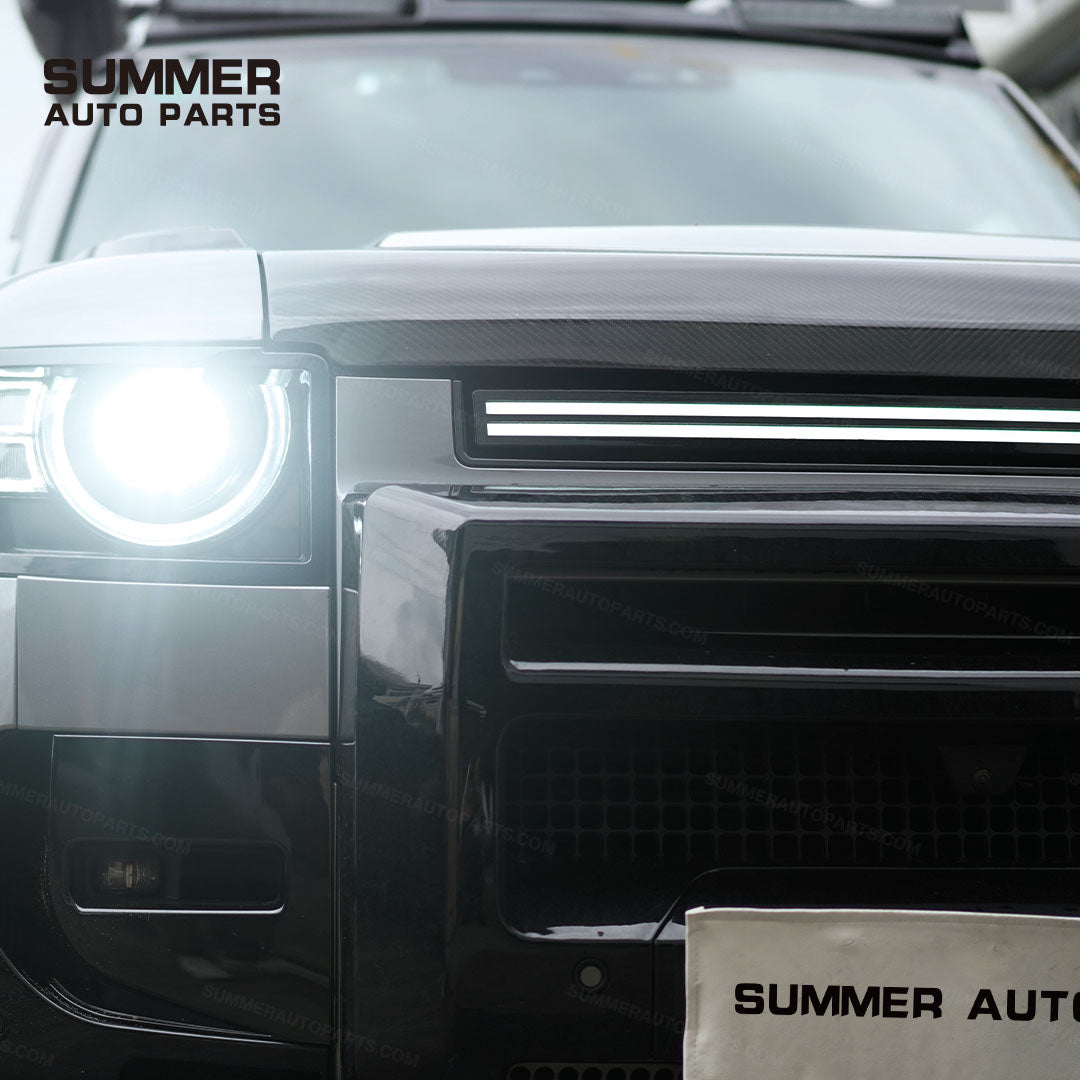

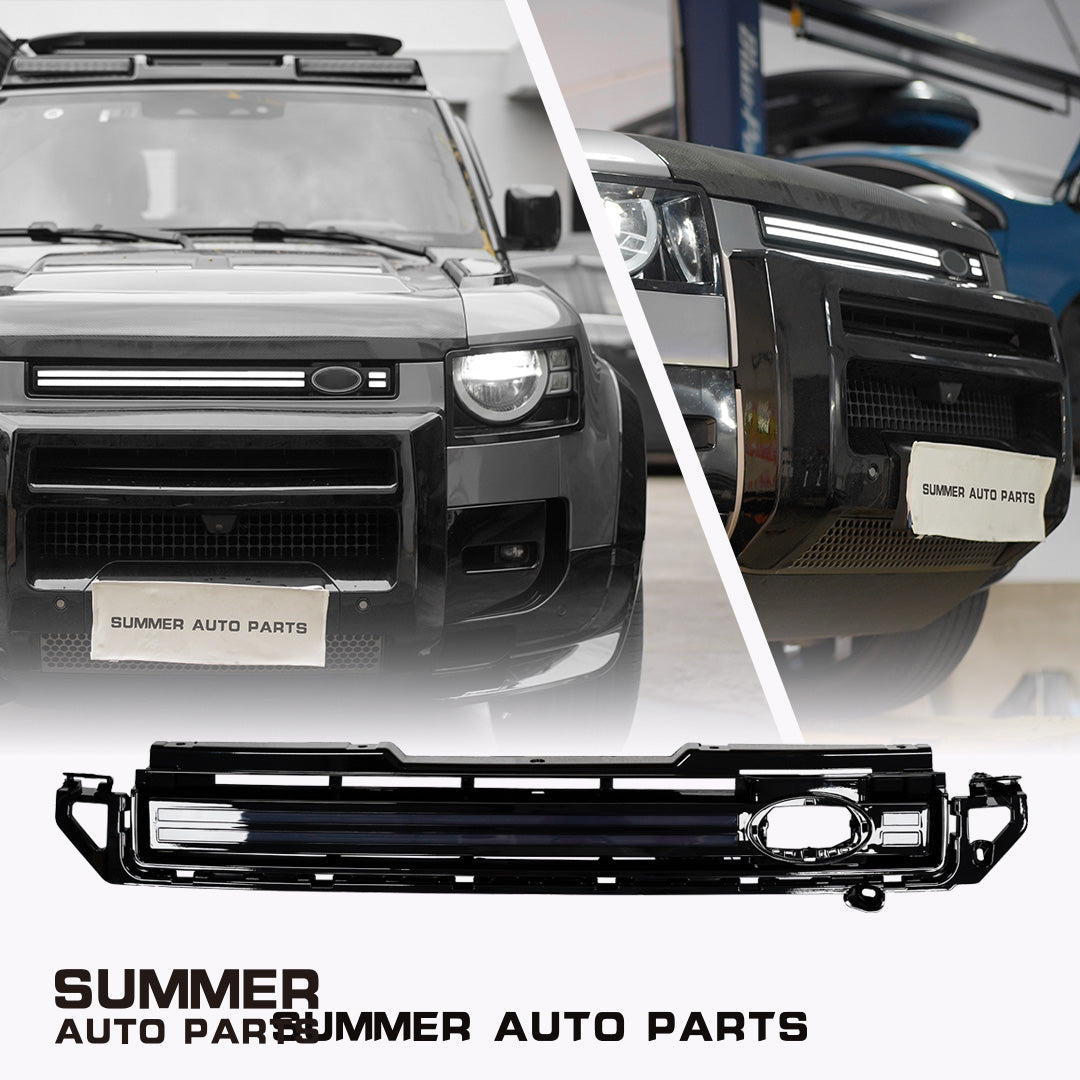

• Configuration: Single linear light bar or dual linear light bar
• Wiring: Dedicated lead with fuse adapter - connects to F7B fuse slot, engine bay

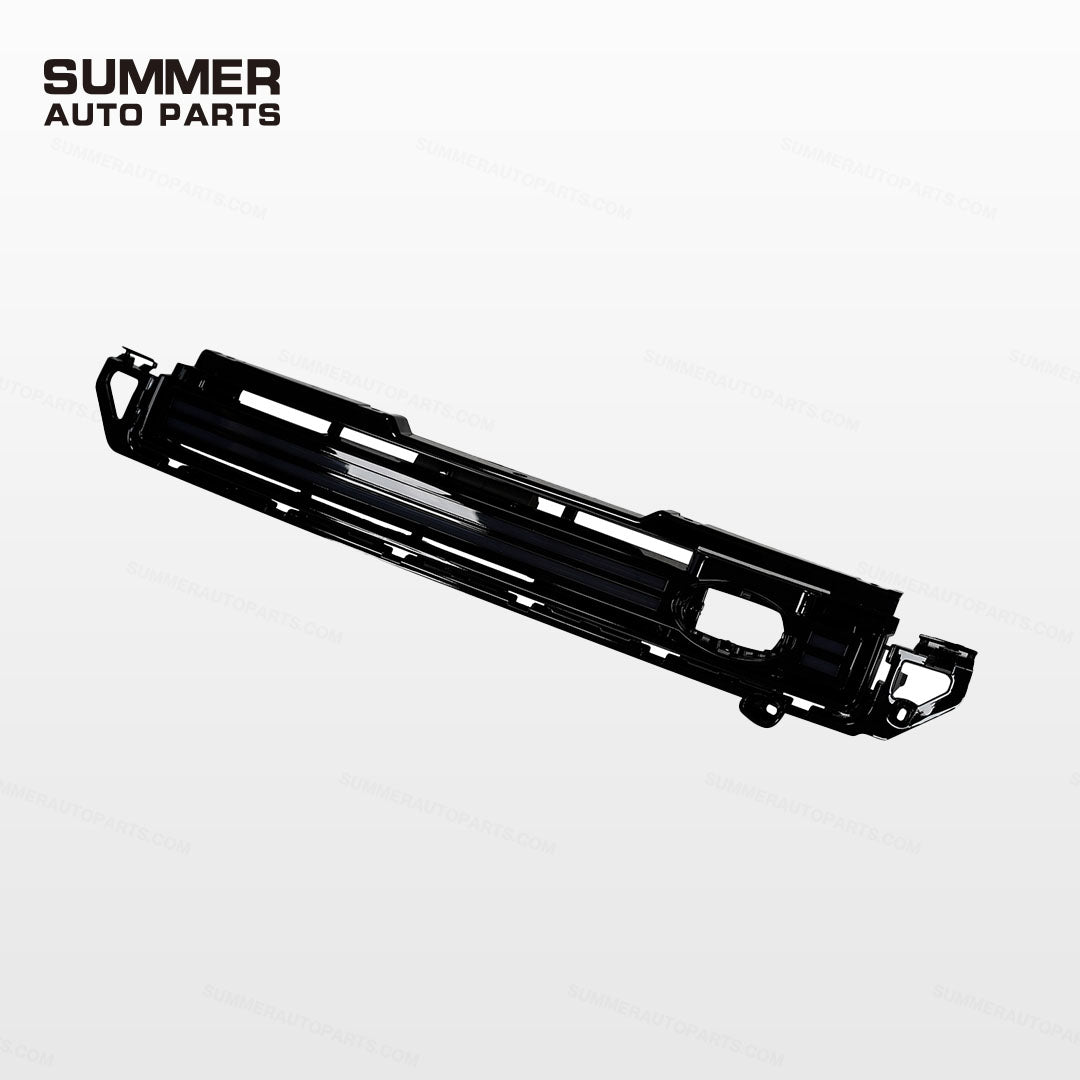

• ACC Radar: Factory mounting points retained on reverse panel
• Compatibility: Land Rover Defender 90, 110, 130 L663 - 2020 to 2026

Pairs with the LED headlight assembly and smoked tail lights for a consistent front-to-rear lighting build. Add lower bumper light pods to extend coverage across the full front axle line.

FAQ

Does this grille panel conflict with the factory ACC radar module?

No. The reverse side of the ABS panel retains the factory ACC mounting points. The original module reinstalls using the four original T20 screws without triggering system errors.

How does the factory green emblem transfer to the new panel?

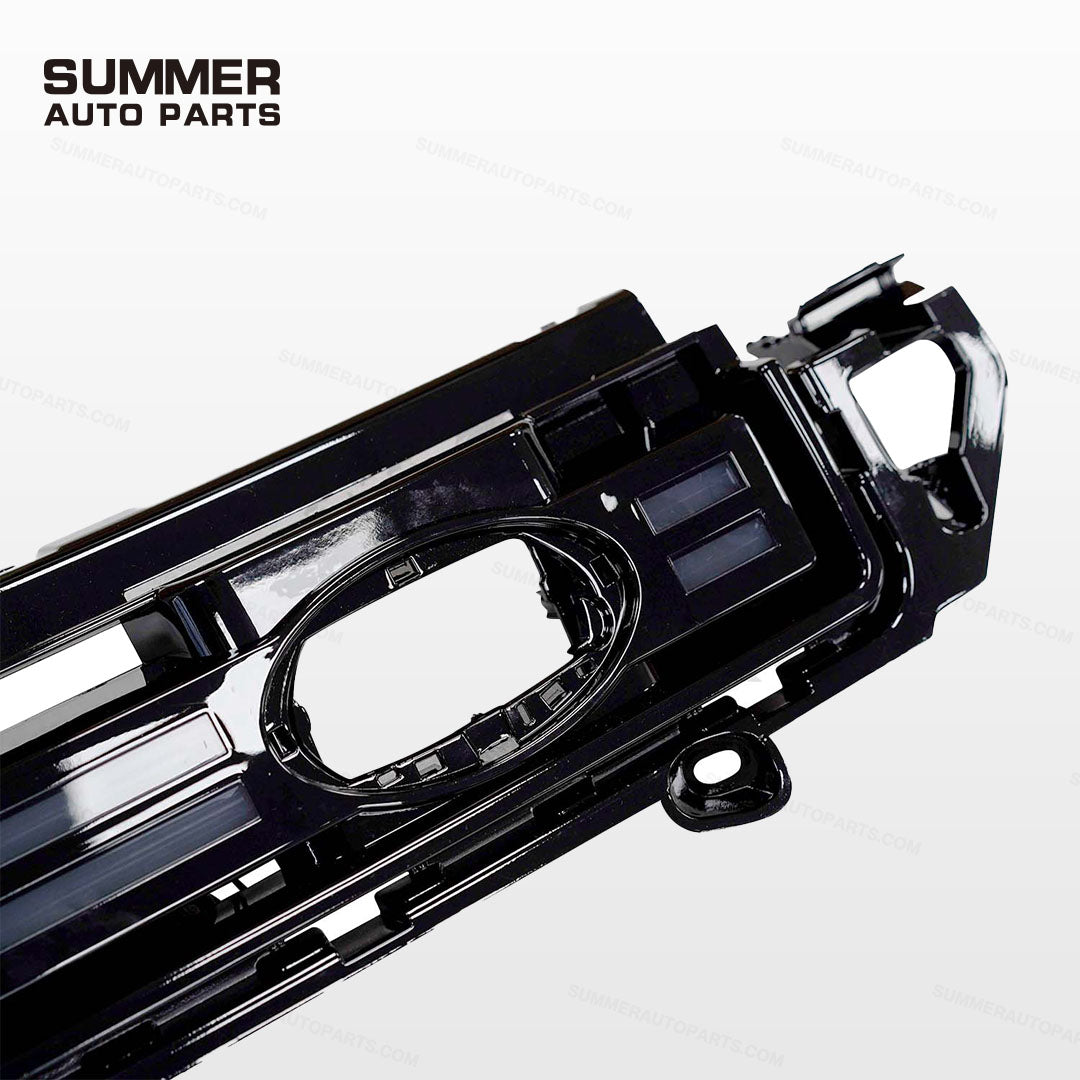

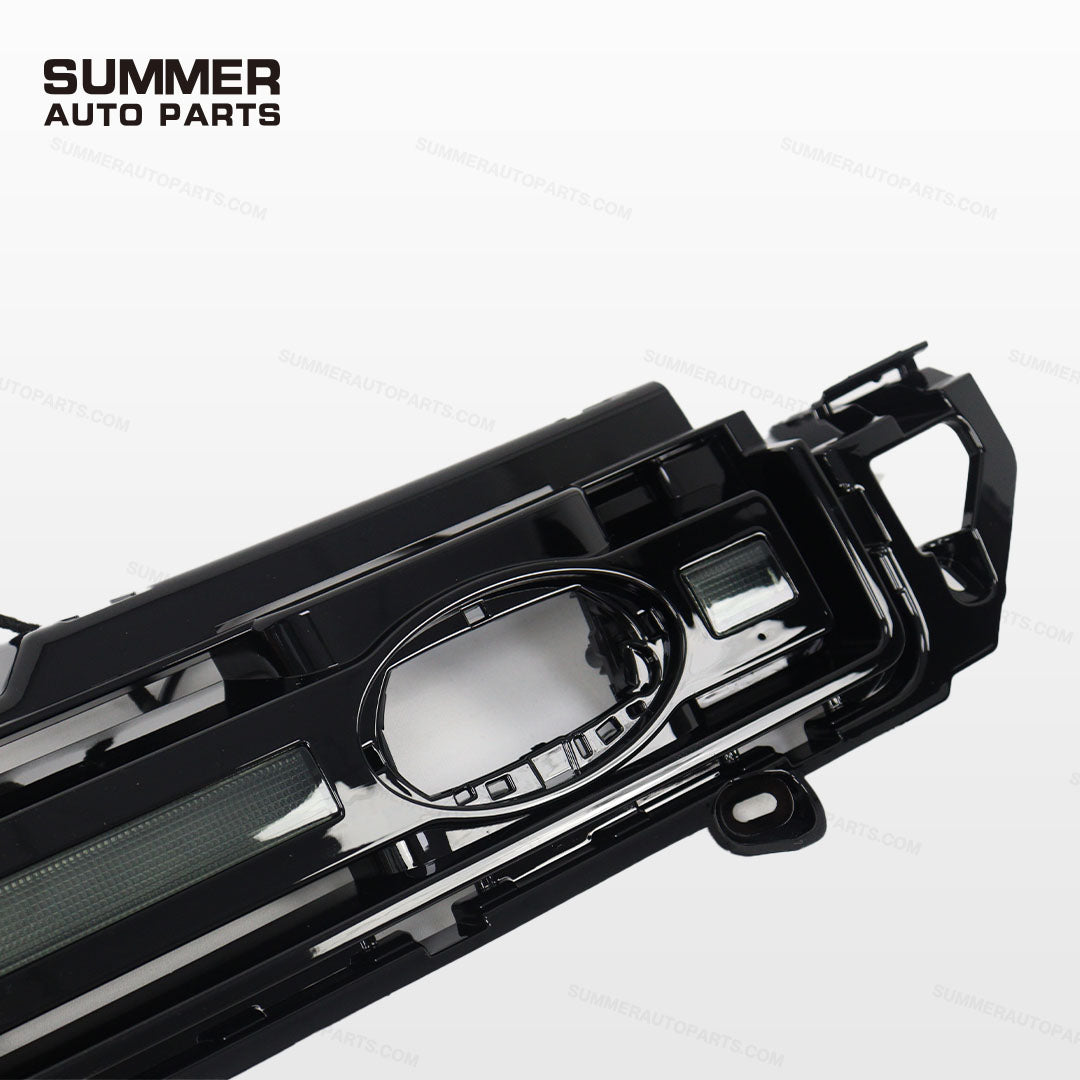

The factory badge unclips from the original trim and presses into the new central housing by aligning the five built-in release clips and three positioning pins. No adhesive required.

Where do the power leads connect in the engine bay?

The positive lead connects to the F7B fuse slot inside the main engine bay fuse box. The negative ground wire runs to the 10mm shock tower grounding bolt.

How do you avoid scratching the painted bumper during grille removal?

Apply masking tape along the upper bumper edge before starting. Use plastic trim tools only - metal tools will mark the paint when releasing the grille retaining clips.
