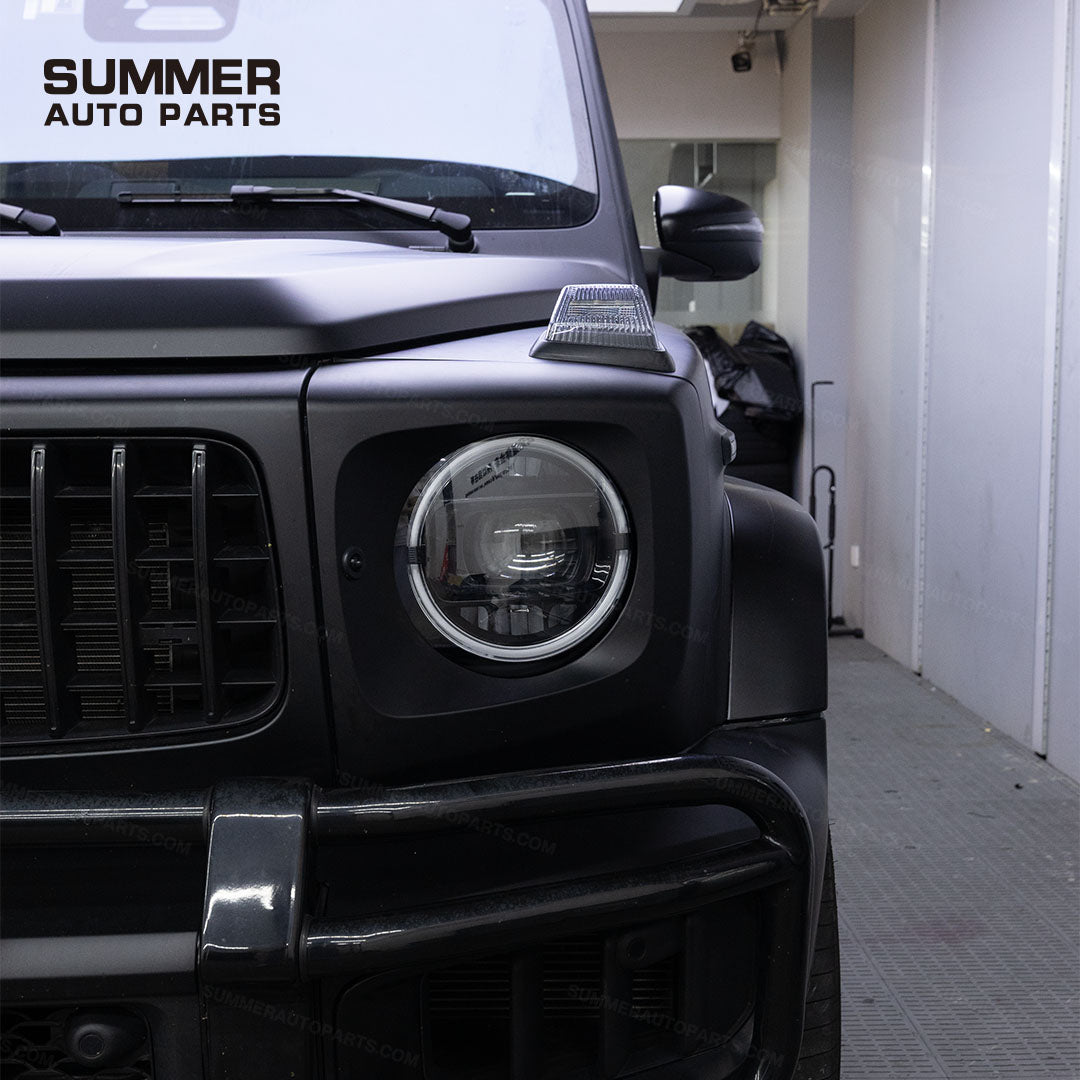

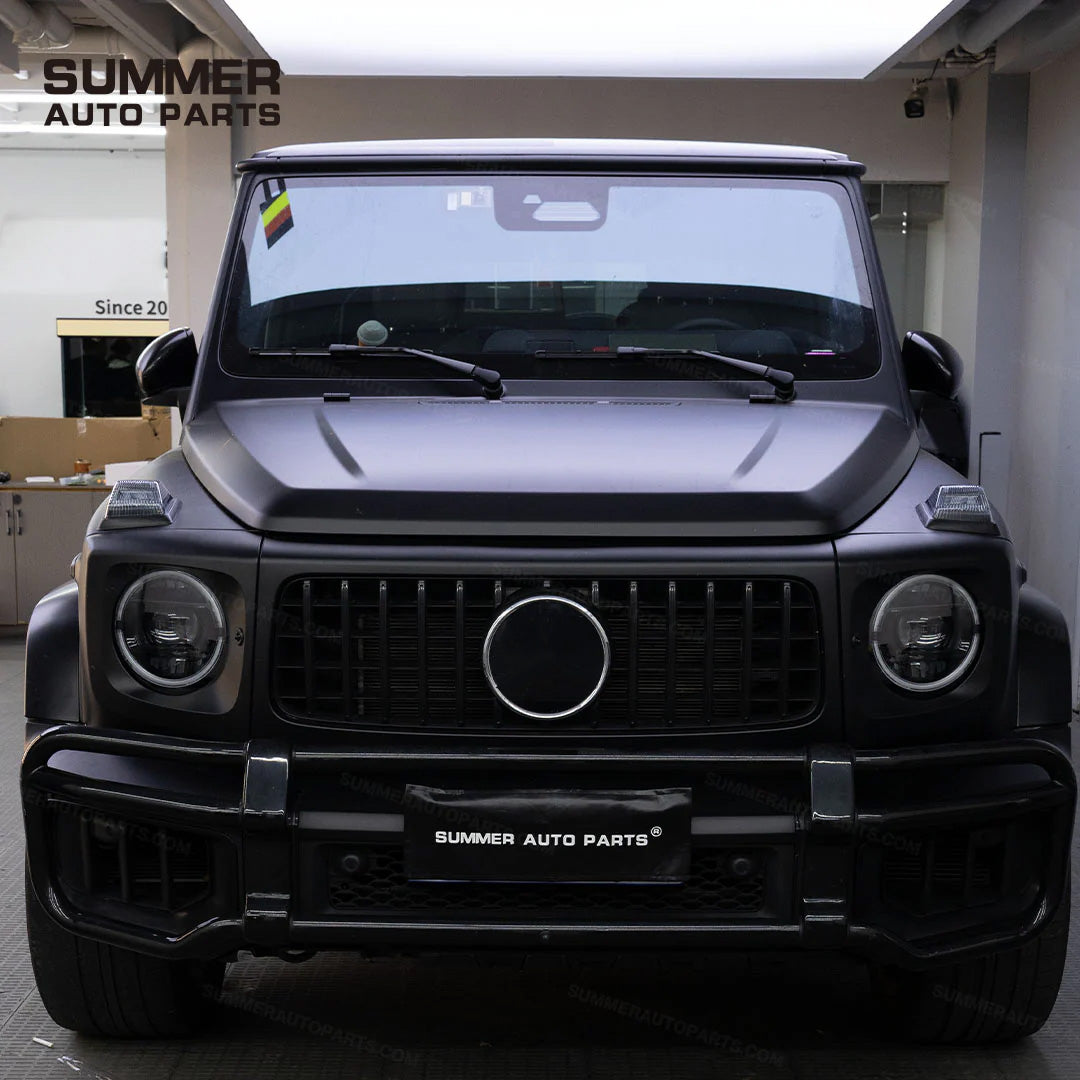

Black Edition LED Headlights for Mercedes-Benz G-Class W465 2019-2025

Mercedes-Benz G-Class owners building a dark exterior theme run into one consistent problem: the factory chrome headlight housings break the monochromatic front profile. Standard silver housings also collect road film and show internal fading after extended highway mileage. This black edition assembly replaces the factory unit on the W465 chassis with a dark-bezeled housing that holds the uniform front appearance across urban transit and long-range touring use.

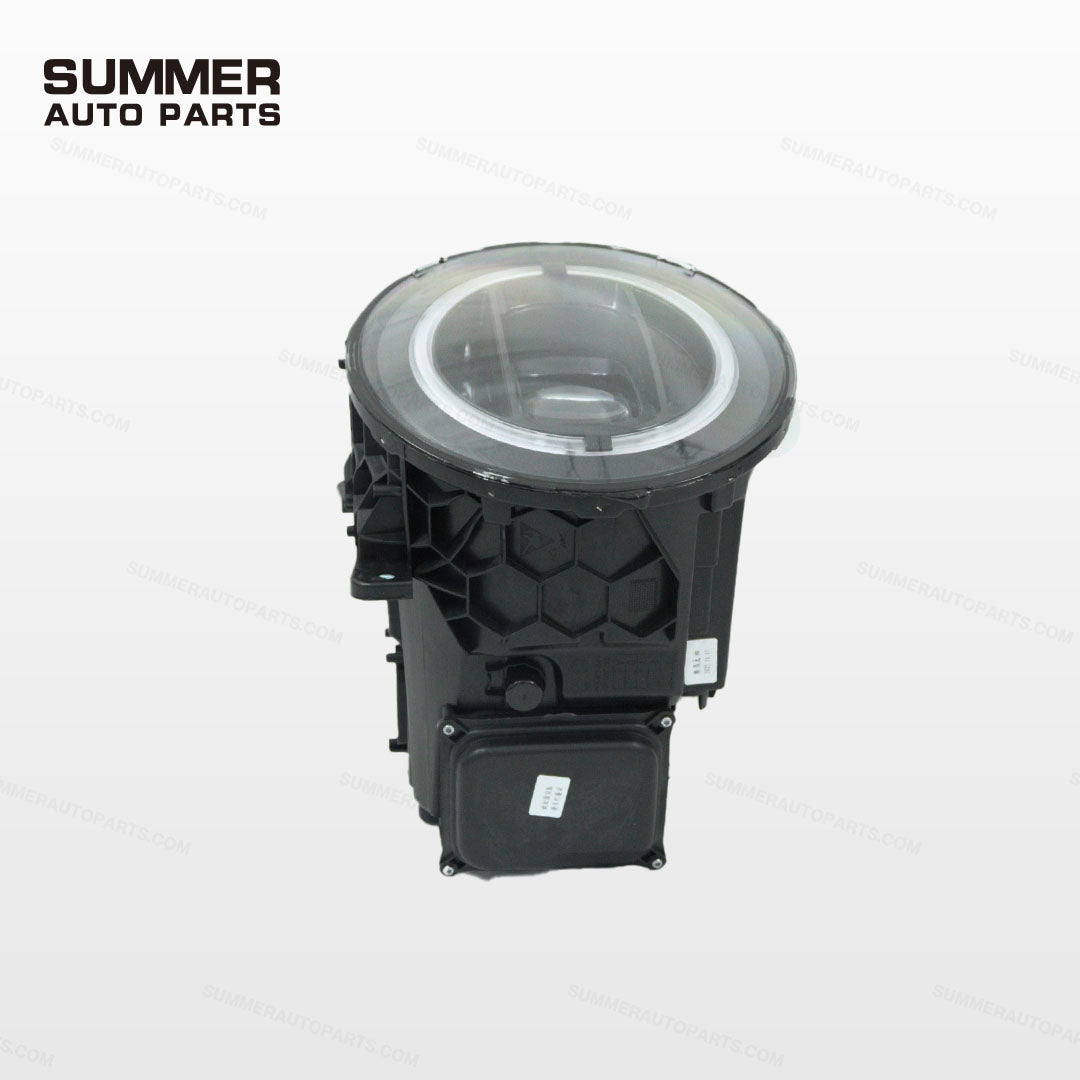

The housing uses the original factory driver computer modules - transferred from the side and bottom positions of the stock lamps into the designated slots on the new ABS structure. This keeps the CAN-bus wiring communication intact and prevents dashboard warning codes. The dark internal bezel retains full beam reflection without scattering output. Hard-coated polycarbonate lens resists stone impact on highway routes. No drilling, no body modification - the assembly uses the original factory mounting tabs under the bonnet.

Specifications

• SKU: SAP-W465-061
• Lens Material: Hard-coated polycarbonate
• Housing Material: Molded ABS plastic
• Connector: Factory plug-and-play pins
• Module Transfer: Requires original factory driver modules (side and bottom positions)
• Compatibility: Mercedes-Benz G-Class W465 - 2019 to 2025

Pairs with a gloss black front grille guard for a consistent dark front build. Add roof cargo storage trays to complete the exterior setup for long-range touring.

FAQ

Will these headlights trigger CAN-bus warning codes on the dashboard?

No - provided the original factory driver modules are transferred correctly. Each module must be unscrewed from the stock assembly and moved into the designated mounting slot on the new housing. The CAN-bus communication runs through the original modules, not the housing itself.

Can the driver-side and passenger-side modules be swapped during the transfer?

No. Each factory driver module is position-specific. Move each module directly to the identical side on the new housing - swapping sides will cause system synchronization errors.

Does installation require drilling or body modification?

No. The assembly uses the original factory mounting tabs under the bonnet for attachment. No drilling, no body trimming.

What are the steps to remove the factory headlight assembly?

Lift the rubber engine bay seal strips, loosen the front bumper edges slightly to access the lower retaining hardware, then unclip the headlight washer fluid hose before pulling the assembly clear.
